PT ATLANTIC INTRACO
Industrial Supply Company
Equipment Fire Extinguishers
Fire Hydrant Equipment
High Pressure Fire Hydrant :
Body material |
: |
Model HYD056-CI-100-YW - Cast Iron to BS 1452Model HYD056-CS-150-RD - Carbon Steel |
Test pressure |
: |
30 bar (435 psi) |
Working pressure |
: |
20 bar (290 psi) |
Outlet pressure setting |
: |
7 bar (101 psi) at static flow |
Finishing |
: |
Red & Yellow |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 Way Fire Hydrant :
Body material |
: |
Cast Iron to BS 1452 |
Outlet |
: |
Copper alloy BS 1400 |
Test pressure |
: |
30 bar (435 psi) |
Working pressure |
: |
20 bar (290 psi) |
Finishing |
: |
Red & Yellow |
Model HYD059-CI-100-YW can be fitted with an underground 4" gate valve with spindle cap (sluice valve) and operated by using a hydrant key and bar (HYD066-CI-030-BK / HYD066-LA-030-NA)
3 Way Fire Hydrant :
Body material |
: |
Cast Iron to BS 1452 |
Outlet |
: |
Copper alloy BS 1400 |
Test pressure |
: |
20 bar (290 psi) |
Working pressure |
: |
15 bar (217 psi) |
Finishing |
: |
Red |
Model HYD061-CI-150-RD can be fitted with an underground 6" gate valve with spindle cap (sluice valve) and operated by using a hydrant key and bar(HYD066-CI-030-BK / HYD066-LA-030-NA)
Internal Valved Fire Hydrant
This hydrant is operated by using a hydrant wrench to turn the operating mechanism at the top of the hydrant which will open the valve seat It is available in two sizes 4" and 6"..
Specification :
Body |
: |
Cast Iron |
Valve seat |
: |
Nylon |
Valve seat ring |
: |
Bronze |
Test Pressure |
: |
20 Bar (290 psi) |
Working Pressure |
: |
10 Bar (145 psi) |

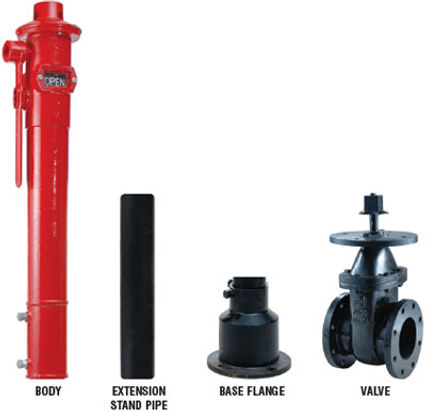

Indicator Post With Gate Valve
The Indicator Post with gate valve provides a means for operating a buried or otherwise inaccessible gate valve to controlled flow of water in buried pipe. A wrench is provided to fit on top of the unit for turning the gate valve open and shut.
Indicator Post readily and clearly indicates whether the gate valve buried is open or shut. It is suitable for gate valves from 4" up to 12".
The Indicator Post is manufactured to suit various buried depth, it is also easily adjusted in the field for exact depth without disassembly. It is mounted on top of the gate valve with flange for support.
Material of construction: Cast Iron
Hydrant Equipment
Duck Foot Bend
Underground
Hydrant BS 750
Cast Iron Hydrant Chamber
Concrete Hydrant Chamber
